Zabbix
使用官方Docker 镜像运行Zabbix docker-compose 编排文件
Server 配置
[root@zabbix etc]# cat zabbix_server.conf
PidFile=/tmp/zabbix_server.pid
LogFile=/tmp/zabbix_server.log
DBHost=x.x.x.x
DBName=zabbix
DBUser=zabbix
DBPassword=zabbix_pwd
DBSocket=/tmp/mysql.sock
Include=/usr/local/zabbix/etc/zabbix_server.conf.d/*.conf
StartPollers=16
SNMPTrapperFile=/var/log/snmptrap/snmptrap.log
Timeout=4
AlertScriptsPath=/usr/local/zabbix/share/zabbix/alertscripts
ExternalScripts=/usr/local/zabbix/share/zabbix/externalscripts
LogSlowQueries=3000
报警设置
1. 脚本参数:
{ALERT.SUBJECT}
{ALERT.MESSAGE}

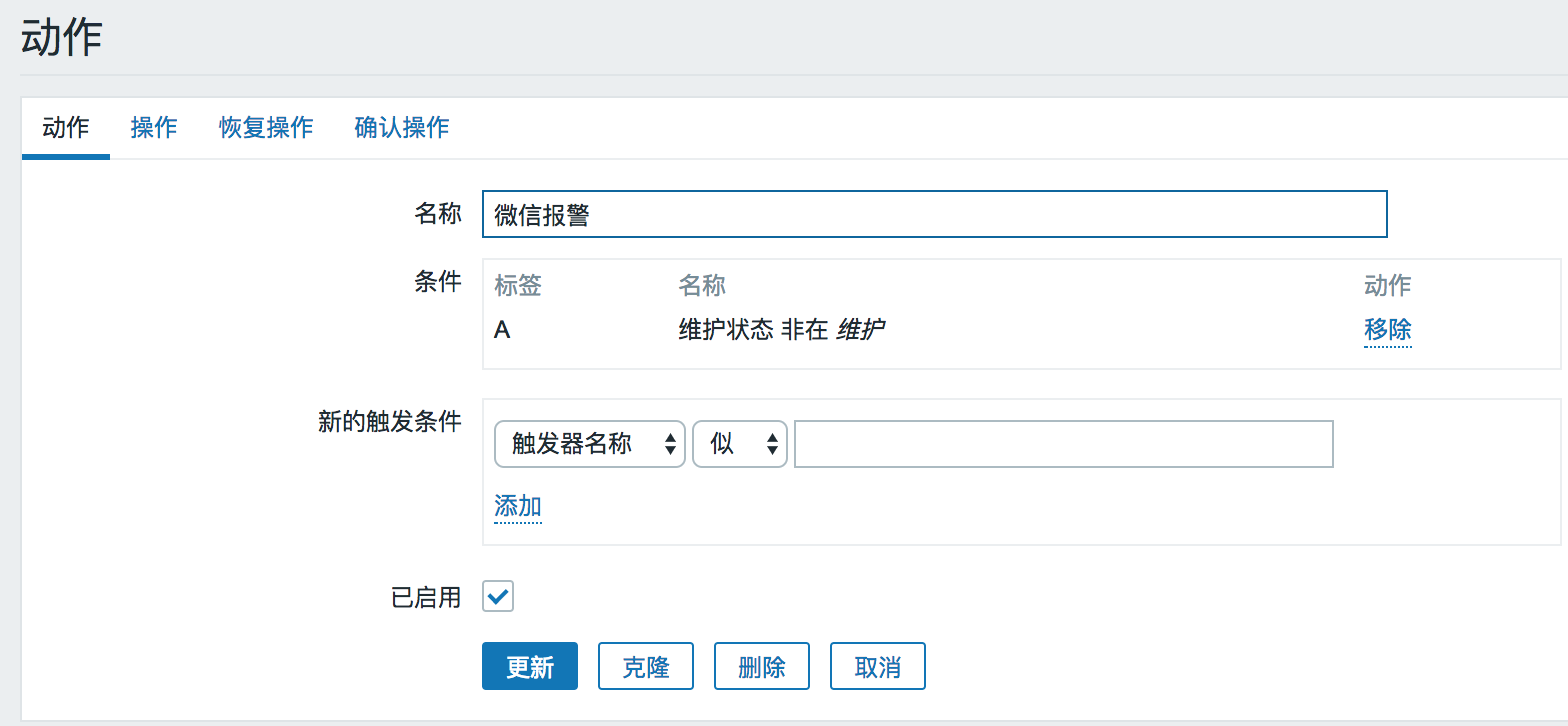

2. 动作:
默认接收人:
服务器:{HOSTNAME1}发生: {TRIGGER.NAME} 故障!
告警主机:{HOSTNAME1}
告警时间:{EVENT.DATE} {EVENT.TIME}
告警等级:{TRIGGER.SEVERITY}
告警信息: {TRIGGER.NAME}
告警项目:{TRIGGER.KEY1}
问题详情:{ITEM.NAME}:{ITEM.VALUE}
服务器:{HOSTNAME1}: {TRIGGER.NAME}已恢复!
告警主机:{HOSTNAME1}
告警时间:{EVENT.DATE} {EVENT.TIME}
告警等级:{TRIGGER.SEVERITY}
告警信息: {TRIGGER.NAME}
告警项目:{TRIGGER.KEY1}
问题详情:{ITEM.NAME}:{ITEM.VALUE}
模板
- https://monitoringartist.github.io/zabbix-searcher/#
- 模板 -> 应用集 -> 监控项 -> 触发器
触发器多参数示例
{Template DT general monitor for 302:ngx_status[count,499].last()}>10
agent 配置文件
UserParameter=chk_timezone,if [ `date +%Z` != CST ];then echo 0 ;else echo 1;fi
UserParameter=tcp_status[*],/data/script/tcp_status.sh $1
UserParameter=chk_kt_rsync,/data/script/chk_kt_sync.sh
UserParameter=chk_openfile,/usr/sbin/lsof -n|wc -l
UserParameter=ngx_status[*],/data/script/ngx_status.sh $1 $2
UserParameter=chk_nginx_process,/bin/ps -ef|grep nginx|grep -v grep|wc -l
UserParameter=chk_io_usage,/usr/bin/iostat -x 1 2 | /usr/bin/perl -lane '$cnt++ and next if /Device/; $max < $F[-1] and $max = $F[-1] if $cnt > 1; END{ print $max || 0.00 }'
UserParameter=find_disk,/data/script/find_disk.sh
UserParameter=chk_disk_io[*],/data/script/chk_disk_io.sh $1 $2
UserParameter=chk_thread[*],/data/script/chk_thread.sh $1
