kubernetes 1.13.8 二进制手动部署

2019/08/19 Kubernetes

2019 都过大半了, 一直比较忙,也有点懒…. 1.13 都出来很久了,还是决定折腾一把!

  • 通读一遍先熟悉了过程在实际操作!!!
  • 通读一遍先熟悉了过程在实际操作!!!
  • 通读一遍先熟悉了过程在实际操作!!!

阅读前可参考之前的 二进制手动部署kubernetes 1.10.10

虚拟化平台 vmware vsphere esxi; 下面各节点配置均为 4核、8GB、系统盘40GB,内存必须4G+;

OS IP Docker 内核版本 角色
CentOS 7.6.1810 192.168.1.230 19.03.1 4.4.189 Master/etcd01
- 192.168.1.231 - - Master/etcd02
- 192.168.1.232 - - Master/etcd03
- 192.168.1.233 - - Node01
- 192.168.1.234 - - Node02
- 192.168.1.235 - - Node03
  • 所有配置及证书生成等都在master01 节点上操作完成, 然后在同步配置到各个节点;
  • 本文所有的配置文件及脚本均放置在 github kshell

系统初始化

  • 这里不多说,还是和以前一样,直接复制脚本执行即可完成初始化配置.
#!/bin/bash
init() {
setenforce 0
sed -i 's/SELINUX=enforcing/SELINUX=disalbe/g' /etc/sysconfig/selinux

cat >> /etc/security/limits.conf <<EOF
* soft nofile 65536
* hard nofile 65536
* soft nproc unlimited
* hard nproc unlimited
EOF

sed -ri '/^[^#]*swap/s@^@#@' /etc/fstab
swapoff -a

systemctl stop firewalld && systemctl disable firewalld


cat >> /etc/sysctl.conf <<EOF
net.bridge.bridge-nf-call-iptables=1
net.bridge.bridge-nf-call-ip6tables=1
net.ipv4.ip_forward=1
net.ipv4.tcp_tw_recycle=0
vm.swappiness=0
vm.overcommit_memory=1
vm.panic_on_oom=0
fs.inotify.max_user_watches=89100
fs.file-max=52706963
fs.nr_open=52706963
net.ipv6.conf.all.disable_ipv6=1
net.netfilter.nf_conntrack_max=2310720
EOF

sysctl -p

yum install -y wget
wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo
yum install -y epel-release
yum install -y conntrack ipvsadm ipset jq sysstat curl iptables libseccomp ntpdate telnet iproute git lrzsz
ntpdate cn.pool.ntp.org
}

kernel(){
rpm --import https://www.elrepo.org/RPM-GPG-KEY-elrepo.org
rpm -Uvh http://www.elrepo.org/elrepo-release-7.0-3.el7.elrepo.noarch.rpm
yum --enablerepo=elrepo-kernel install kernel-lt-devel kernel-lt -y
## 默认启动的顺序是从0开始，新内核是从头插入（目前位置在0，而4.4的是在1），所以需要选择0
grub2-set-default 0
}

ipvs(){
:> /etc/modules-load.d/ipvs.conf
module=(
ip_vs
ip_vs_lc
ip_vs_wlc
ip_vs_rr
ip_vs_wrr
ip_vs_lblc
ip_vs_lblcr
ip_vs_dh
ip_vs_sh
ip_vs_fo
ip_vs_nq
ip_vs_sed
ip_vs_ftp
nf_conntrack
  )
for kernel_module in ${module[@]};do
    /sbin/modinfo -F filename $kernel_module |& grep -qv ERROR && echo $kernel_module >> /etc/modules-load.d/ipvs.conf || :
done
systemctl enable --now systemd-modules-load.service
}

docker(){
yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum -y install docker-ce
systemctl start docker
systemctl stop docker

cat > /etc/docker/daemon.json <<EOF
{
  "registry-mirrors": ["https://dlvqhrac.mirror.aliyuncs.com"]
}
EOF
}

init_history(){
cat >>/etc/profile <<EOF
## 设置history格式
export HISTTIMEFORMAT="[%Y-%m-%d %H:%M:%S] [`who am i 2>/dev/null| awk '{print $NF}'|sed -e 's/[()]//g'`] "
## 实时记录用户在shell中执行的每一条命令
export PROMPT_COMMAND='\
if [ -z "\$OLD_PWD" ];then
    export OLD_PWD=\$PWD;
    fi;
    if [ ! -z "$\LAST_CMD" ] && [ "\$(history 1)" != "\$LAST_CMD" ]; then
        logger -t `whoami`_shell_cmd "[\$OLD_PWD]\$(history 1)";
        fi ;
        export LAST_CMD="\$(history 1)";
        export OLD_PWD=\$PWD;'
EOF
source /etc/profile
}

## 初始化系统
init
## 内核升级
kernel
## ipvs 内核模块加载
ipvs
## 安装docker
docker
## 配置历史命令记录
init_history
  • 执行完成后,reboot 重启机器即可, 或者可以直接init 0 关机先创建个虚拟机快照

cfssl

  • install_cfssl.sh
#!/bin/bash

Download(){
#download cfssl
curl -o /usr/local/bin/cfssl https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
#download cfssljson
curl -o /usr/local/bin/cfssljson https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64

chmod +x /usr/local/bin/cfssl
chmod +x /usr/local/bin/cfssljson
}

init(){
	mv cfssl_linux-amd64 /usr/local/bin/cfssl
	mv cfssljson_linux-amd64 /usr/local/bin/cfssljson
	chmod +x /usr/local/bin/cfssl
	chmod +x /usr/local/bin/cfssljson
}

case $1 in
   down)
   Download ;;
   init)
   init ;;
   *)
   echo "down | init"
esac

etcd

证书配置

etcd-csr.json

{
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "O": "etcd",
      "OU": "etcd Security",
      "L": "Shengzhen",
      "ST": "Shengzhen",
      "C": "CN"
    }
  ],
  "CN": "etcd",
  "hosts": [
    "127.0.0.1",
    "localhost",
    "192.168.1.230",
    "192.168.1.231",
    "192.168.1.232"
  ]
}

etcd-gencert.json

{
  "signing": {
    "default": {
        "usages": [
          "signing",
          "key encipherment",
          "server auth",
          "client auth"
        ],
        "expiry": "175200h"
    }
  }
}

etcd-root-ca-csr.json

{
  "key": {
    "algo": "rsa",
    "size": 4096
  },
  "names": [
    {
      "O": "etcd",
      "OU": "etcd Security",
      "L": "Shengzhen",
      "ST": "Shengzhen",
      "C": "CN"
    }
  ],
  "CN": "etcd-root-ca"
}

key_etcd.sh

  • 生成证书
cfssl gencert --initca=true etcd-root-ca-csr.json | cfssljson --bare etcd-root-ca
cfssl gencert --ca etcd-root-ca.pem --ca-key etcd-root-ca-key.pem --config etcd-gencert.json etcd-csr.json | cfssljson --bare etcd

etcd.conf

  • 同步到其他节点后,修改对应的NAME和监听IP地址即可!!!!
# [member]
ETCD_NAME=etcd1
ETCD_DATA_DIR="/var/lib/etcd/etcd1.etcd"
ETCD_WAL_DIR="/var/lib/etcd/wal"
ETCD_SNAPSHOT_COUNT="100"
ETCD_HEARTBEAT_INTERVAL="100"
ETCD_ELECTION_TIMEOUT="1000"
ETCD_LISTEN_PEER_URLS="https://192.168.1.230:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.1.230:2379,http://127.0.0.1:2379"
ETCD_MAX_SNAPSHOTS="5"
ETCD_MAX_WALS="5"
#ETCD_CORS=""
# [cluster]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.1.230:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.1.230:2379"
# if you use different ETCD_NAME (e.g. test), set ETCD_INITIAL_CLUSTER value for this name, i.e. "test=http://..."
ETCD_INITIAL_CLUSTER="etcd1=https://192.168.1.230:2380,etcd2=https://192.168.1.231:2380,etcd3=https://192.168.1.232:2380"
ETCD_INITIAL_CLUSTER_STATE="new"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
#ETCD_DISCOVERY=""
#ETCD_DISCOVERY_SRV=""
#ETCD_DISCOVERY_FALLBACK="proxy"
#ETCD_DISCOVERY_PROXY=""
#ETCD_STRICT_RECONFIG_CHECK="false"
#ETCD_AUTO_COMPACTION_RETENTION="0"
# [proxy]
#ETCD_PROXY="off"
#ETCD_PROXY_FAILURE_WAIT="5000"
#ETCD_PROXY_REFRESH_INTERVAL="30000"
#ETCD_PROXY_DIAL_TIMEOUT="1000"
#ETCD_PROXY_WRITE_TIMEOUT="5000"
#ETCD_PROXY_READ_TIMEOUT="0"
# [security]
ETCD_CERT_FILE="/etc/etcd/ssl/etcd.pem"
ETCD_KEY_FILE="/etc/etcd/ssl/etcd-key.pem"
ETCD_CLIENT_CERT_AUTH="true"
ETCD_TRUSTED_CA_FILE="/etc/etcd/ssl/etcd-root-ca.pem"
ETCD_AUTO_TLS="true"
ETCD_PEER_CERT_FILE="/etc/etcd/ssl/etcd.pem"
ETCD_PEER_KEY_FILE="/etc/etcd/ssl/etcd-key.pem"
ETCD_PEER_CLIENT_CERT_AUTH="true"
ETCD_PEER_TRUSTED_CA_FILE="/etc/etcd/ssl/etcd-root-ca.pem"
ETCD_PEER_AUTO_TLS="true"
# [logging]
#ETCD_DEBUG="false"
# examples for -log-package-levels etcdserver=WARNING,security=DEBUG
#ETCD_LOG_PACKAGE_LEVELS=""

etcd.service

[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
[Service]
Type=notify
WorkingDirectory=/var/lib/etcd/
EnvironmentFile=-/etc/etcd/etcd.conf
User=etcd
# set GOMAXPROCS to number of processors
ExecStart=/bin/bash -c "GOMAXPROCS=$(nproc) /usr/local/bin/etcd --name=\"${ETCD_NAME}\" --data-dir=\"${ETCD_DATA_DIR}\" --listen-client-urls=\"${ETCD_LISTEN_CLIENT_URLS}\""
Restart=on-failure
LimitNOFILE=65536
[Install]
WantedBy=multi-user.target

install.sh

#!/bin/bash

set -e

ETCD_VERSION="3.3.12"

# 下载 Etcd 二进制文件
function download(){
    if [ ! -f "etcd-v${ETCD_VERSION}-linux-amd64.tar.gz" ]; then
        wget https://github.com/coreos/etcd/releases/download/v${ETCD_VERSION}/etcd-v${ETCD_VERSION}-linux-amd64.tar.gz
        tar -zxvf etcd-v${ETCD_VERSION}-linux-amd64.tar.gz
    fi
}

preinstall(){
    getent group etcd >/dev/null || groupadd -r etcd
    getent passwd etcd >/dev/null || useradd -r -g etcd -d /var/lib/etcd -s /sbin/nologin -c "etcd user" etcd
}

install(){
    echo -e "\033[32mINFO: Copy etcd...\033[0m"
    tar -zxf etcd-v${ETCD_VERSION}-linux-amd64.tar.gz
    cp etcd-v${ETCD_VERSION}-linux-amd64/etcd* /usr/local/bin
    rm -rf etcd-v${ETCD_VERSION}-linux-amd64
    echo -e "\033[32mINFO: Copy etcd config...\033[0m"
    cp -r conf /etc/etcd
    chown -R etcd:etcd /etc/etcd
    chmod -R 755 /etc/etcd/ssl
    echo -e "\033[32mINFO: Copy etcd systemd config...\033[0m"
    cp etcd.service /lib/systemd/system
    systemctl daemon-reload
}

postinstall(){
    if [ ! -d "/var/lib/etcd" ]; then
        mkdir /var/lib/etcd
        chown -R etcd:etcd /var/lib/etcd
    fi
}

preinstall
install
postinstall

test.sh

export ETCDCTL_API=3
etcdctl --cacert=/etc/etcd/ssl/etcd-root-ca.pem --cert=/etc/etcd/ssl/etcd.pem --key=/etc/etcd/ssl/etcd-key.pem --endpoints=https://192.168.1.230:2379,https://192.168.1.231:2379,https://192.168.1.232:2379 endpoint health

文件列表

# tree
.
├── conf
│   ├── etcd.conf
│   └── ssl
│       ├── etcd.csr
│       ├── etcd-csr.json
│       ├── etcd-gencert.json
│       ├── etcd-key.pem
│       ├── etcd.pem
│       ├── etcd-root-ca.csr
│       ├── etcd-root-ca-csr.json
│       ├── etcd-root-ca-key.pem
│       ├── etcd-root-ca.pem
│       └── key_etcd.sh
├── etcd.service
├── etcd-v3.3.12-linux-amd64.tar.gz
├── install.sh
└── test.sh

2 directories, 15 files

kubernetes

证书配置

新版本已经逐渐使用 TLS + RBAC 配置，所以本次安装将会启动大部分 TLS + RBAC 配置，包括 kube-controler-manager、kube-scheduler 组件不再连接本地 kube-apiserver 的 8080 非认证端口，kubelet 等组件 API 端点关闭匿名访问，启动 RBAC 认证等；为了满足这些认证，需要签署以下证书

  • k8s-root-ca-csr.json 集群 CA 根证书
  • k8s-gencert.json 用于生成其他证书的标准配置
  • kube-apiserver-csr.json apiserver TLS 认证端口需要的证书
  • kube-controller-manager-csr.json controller manager 连接 apiserver 需要使用的证书，同时本身 10257 端口也会使用此证书
  • kube-scheduler-csr.json scheduler 连接 apiserver 需要使用的证书，同时本身 10259 端口也会使用此证书
  • kube-proxy-csr.json proxy 组件连接 apiserver 需要使用的证书
  • kubelet-api-admin-csr.json apiserver 反向连接 kubelet 组件 10250 端口需要使用的证书(例如执行 kubectl logs)
  • admin-csr.json 集群管理员(kubectl)连接 apiserver 需要使用的证书
  • metrics-server-csr.json metrics-server 需要配置的证书,用来获取集群资源信息;
::::::::::::::
admin-csr.json
::::::::::::::
{
    "CN": "system:masters",
    "hosts": [],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "Shengzhen",
            "L": "Shengzhen",
            "O": "system:masters",
            "OU": "System"
        }
    ]
}

::::::::::::::
k8s-gencert.json
::::::::::::::
{
    "signing": {
        "default": {
            "expiry": "175200h"
        },
        "profiles": {
            "kubernetes": {
                "usages": [
                    "signing",
                    "key encipherment",
                    "server auth",
                    "client auth"
                ],
                "expiry": "175200h"
            }
        }
    }
}

::::::::::::::
k8s-root-ca-csr.json
::::::::::::::
{
    "CN": "kubernetes",
    "key": {
        "algo": "rsa",
        "size": 4096
    },
    "names": [
        {
            "C": "CN",
            "ST": "Shengzhen",
            "L": "Shengzhen",
            "O": "kubernetes",
            "OU": "System"
        }
    ],
    "ca": {
        "expiry": "175200h"
    }
}

::::::::::::::
kube-apiserver-csr.json
::::::::::::::
{
    "CN": "kubernetes",
    "hosts": [
        "127.0.0.1",
        "10.254.0.1",
        "localhost",
        "*.master.kubernetes.node",
        "kubernetes",
        "kubernetes.default",
        "kubernetes.default.svc",
        "kubernetes.default.svc.cluster",
        "kubernetes.default.svc.cluster.local"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "Shengzhen",
            "L": "Shengzhen",
            "O": "kubernetes",
            "OU": "System"
        }
    ]
}

::::::::::::::
kube-controller-manager-csr.json
::::::::::::::
{
  "CN": "system:kube-controller-manager",
  "hosts": [
    "127.0.0.1",
    "localhost",
    "*.master.kubernetes.node"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Shengzhen",
      "L": "Shengzhen",
      "O": "system:kube-controller-manager",
      "OU": "System"
    }
  ]
}

::::::::::::::
kubelet-api-admin-csr.json
::::::::::::::
{
    "CN": "system:kubelet-api-admin",
    "hosts": [],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "Shengzhen",
            "L": "Shengzhen",
            "O": "system:kubelet-api-admin",
            "OU": "System"
        }
    ]
}

::::::::::::::
kube-proxy-csr.json
::::::::::::::
{
    "CN": "system:kube-proxy",
    "hosts": [],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "Shengzhen",
            "L": "Shengzhen",
            "O": "system:kube-proxy",
            "OU": "System"
        }
    ]
}

::::::::::::::
kube-scheduler-csr.json
::::::::::::::
{
  "CN": "system:kube-scheduler",
  "hosts": [
    "127.0.0.1",
    "localhost",
    "*.master.kubernetes.node"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Shengzhen",
      "L": "Shengzhen",
      "O": "system:kube-scheduler",
      "OU": "System"
    }
  ]
}

::::::::::::::
metrics-server-csr.json
::::::::::::::
{
  "CN": "aggregator",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Shengzhen",
      "L": "Shengzhen",
      "O": "aggregator",
      "OU": "System"
    }
  ]
}

最后使用下面脚本命令生成证书

::::::::::::::
key.sh
::::::::::::::
cfssl gencert --initca=true k8s-root-ca-csr.json | cfssljson --bare k8s-root-ca

for targetName in kube-apiserver kube-controller-manager kube-scheduler kube-proxy kubelet-api-admin admin metrics-server; do
    cfssl gencert --ca k8s-root-ca.pem --ca-key k8s-root-ca-key.pem --config k8s-gencert.json --profile kubernetes $targetName-csr.json | cfssljson --bare $targetName
done

生成配置文件

集群搭建需要预先生成一系列配置文件，生成配置需要预先安装 kubectl 命令；其中配置文件及其作用如下:

  • bootstrap.kubeconfig kubelet TLS Bootstarp 引导阶段需要使用的配置文件
  • kube-controller-manager.kubeconfig controller manager 组件开启安全端口及 RBAC 认证所需配置
  • kube-scheduler.kubeconfig scheduler 组件开启安全端口及 RBAC 认证所需配置
  • kube-proxy.kubeconfig proxy 组件连接 apiserver 所需配置文件
  • audit-policy.yaml apiserver RBAC 审计日志配置文件
  • bootstrap.secret.yaml kubelet TLS Bootstarp 引导阶段使用 Bootstrap Token 方式引导，需要预先创建此 Token

执行下列命令生成上述配置文件

# 指定 apiserver 地址
KUBE_APISERVER="https://127.0.0.1:6443"

# 生成 Bootstrap Token
BOOTSTRAP_TOKEN_ID=$(head -c 6 /dev/urandom | md5sum | head -c 6)
BOOTSTRAP_TOKEN_SECRET=$(head -c 16 /dev/urandom | md5sum | head -c 16)
BOOTSTRAP_TOKEN="${BOOTSTRAP_TOKEN_ID}.${BOOTSTRAP_TOKEN_SECRET}"
echo "Bootstrap Tokne: ${BOOTSTRAP_TOKEN}"

# 生成 kubelet tls bootstrap 配置
echo "Create kubelet bootstrapping kubeconfig..."
kubectl config set-cluster kubernetes \
  --certificate-authority=k8s-root-ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=bootstrap.kubeconfig
kubectl config set-credentials "system:bootstrap:${BOOTSTRAP_TOKEN_ID}" \
  --token=${BOOTSTRAP_TOKEN} \
  --kubeconfig=bootstrap.kubeconfig
kubectl config set-context default \
  --cluster=kubernetes \
  --user="system:bootstrap:${BOOTSTRAP_TOKEN_ID}" \
  --kubeconfig=bootstrap.kubeconfig
kubectl config use-context default --kubeconfig=bootstrap.kubeconfig

# 生成 kube-controller-manager 配置文件
echo "Create kube-controller-manager kubeconfig..."
kubectl config set-cluster kubernetes \
  --certificate-authority=k8s-root-ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=kube-controller-manager.kubeconfig
kubectl config set-credentials "system:kube-controller-manager" \
  --client-certificate=kube-controller-manager.pem \
  --client-key=kube-controller-manager-key.pem \
  --embed-certs=true \
  --kubeconfig=kube-controller-manager.kubeconfig
kubectl config set-context default \
  --cluster=kubernetes \
  --user=system:kube-controller-manager \
  --kubeconfig=kube-controller-manager.kubeconfig
kubectl config use-context default --kubeconfig=kube-controller-manager.kubeconfig

# 生成 kube-scheduler 配置文件
echo "Create kube-scheduler kubeconfig..."
kubectl config set-cluster kubernetes \
  --certificate-authority=k8s-root-ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=kube-scheduler.kubeconfig
kubectl config set-credentials "system:kube-scheduler" \
  --client-certificate=kube-scheduler.pem \
  --client-key=kube-scheduler-key.pem \
  --embed-certs=true \
  --kubeconfig=kube-scheduler.kubeconfig
kubectl config set-context default \
  --cluster=kubernetes \
  --user=system:kube-scheduler \
  --kubeconfig=kube-scheduler.kubeconfig
kubectl config use-context default --kubeconfig=kube-scheduler.kubeconfig

# 生成 kube-proxy 配置文件
echo "Create kube-proxy kubeconfig..."
kubectl config set-cluster kubernetes \
  --certificate-authority=k8s-root-ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=kube-proxy.kubeconfig
kubectl config set-credentials "system:kube-proxy" \
  --client-certificate=kube-proxy.pem \
  --client-key=kube-proxy-key.pem \
  --embed-certs=true \
  --kubeconfig=kube-proxy.kubeconfig
kubectl config set-context default \
  --cluster=kubernetes \
  --user=system:kube-proxy \
  --kubeconfig=kube-proxy.kubeconfig
kubectl config use-context default --kubeconfig=kube-proxy.kubeconfig

# 生成 apiserver RBAC 审计配置文件
cat >> audit-policy.yaml <<EOF
# Log all requests at the Metadata level.
apiVersion: audit.k8s.io/v1
kind: Policy
rules:
- level: Metadata
EOF

# 生成 tls bootstrap token secret 配置文件
cat >> bootstrap.secret.yaml <<EOF
apiVersion: v1
kind: Secret
metadata:
  # Name MUST be of form "bootstrap-token-<token id>"
  name: bootstrap-token-${BOOTSTRAP_TOKEN_ID}
  namespace: kube-system
# Type MUST be 'bootstrap.kubernetes.io/token'
type: bootstrap.kubernetes.io/token
stringData:
  # Human readable description. Optional.
  description: "The default bootstrap token."
  # Token ID and secret. Required.
  token-id: ${BOOTSTRAP_TOKEN_ID}
  token-secret: ${BOOTSTRAP_TOKEN_SECRET}
  # Expiration. Optional.
  expiration: $(date -d'+2 day' -u +"%Y-%m-%dT%H:%M:%SZ")
  # Allowed usages.
  usage-bootstrap-authentication: "true"
  usage-bootstrap-signing: "true"
  # Extra groups to authenticate the token as. Must start with "system:bootstrappers:"
#  auth-extra-groups: system:bootstrappers:worker,system:bootstrappers:ingress
EOF

Master 安装

安装脚本

master 节点上需要三个组件: kube-apiserver、kube-controller-manager、kube-scheduler

  • 主要步骤如下:
    • 下载二进制文件
    • 配置命令及创建链接
    • 复制conf 目录到/etc/kubernetes
    • 复制service 文件
    • 创建相关目录
#!/bin/bash
# 下载 hyperkube
function download_k8s(){
    if [ ! -f "hyperkube_v${KUBE_VERSION}" ]; then
        wget https://storage.googleapis.com/kubernetes-release/release/v${KUBE_VERSION}/bin/linux/amd64/hyperkube -O hyperkube_v${KUBE_VERSION}
        chmod +x hyperkube_v${KUBE_VERSION}
    fi
}

function install_k8s(){
    echo -e "\033[32mINFO: Copy hyperkube...\033[0m"
    cp hyperkube_v${KUBE_VERSION} /usr/bin/hyperkube

    echo -e "\033[32mINFO: Create symbolic link...\033[0m"
    (cd /usr/bin && hyperkube --make-symlinks)

    echo -e "\033[32mINFO: Copy kubernetes config...\033[0m"
    cp -r conf /etc/kubernetes

    echo -e "\033[32mINFO: Copy kubernetes systemd config...\033[0m"
    cp systemd/*.service /lib/systemd/system

    systemctl daemon-reload
}

function postinstall(){
    if [ ! -d "/var/log/kube-audit" ]; then
        mkdir /var/log/kube-audit
    fi

    if [ ! -d "/var/lib/kubelet" ]; then
        mkdir /var/lib/kubelet
    fi
    if [ ! -d "/usr/libexec" ]; then
        mkdir /usr/libexec
    fi
}

install_k8s
postinstall

hyperkube 是一个多合一的可执行文件，通过 –make-symlinks 会在当前目录生成 kubernetes 各个组件的软连接

目录结构

├── apiserver
├── audit-policy.yaml
├── bootstrap.kubeconfig
├── bootstrap.secret.yaml
├── controller-manager
├── json
│   ├── admin-csr.json
│   ├── k8s-gencert.json
│   ├── k8s-root-ca-csr.json
│   ├── key.sh
│   ├── kube-apiserver-csr.json
│   ├── kube-controller-manager-csr.json
│   ├── kubelet-api-admin-csr.json
│   ├── kube-proxy-csr.json
│   ├── kube-scheduler-csr.json
│   └── metrics-server-csr.json
├── kube-controller-manager.kubeconfig
├── kubelet
├── kube-proxy.kubeconfig
├── kube-scheduler.kubeconfig
├── proxy
├── scheduler
├── ssl
│   ├── admin-key.pem
│   ├── admin.pem
│   ├── genconfig.sh
│   ├── k8s-root-ca-key.pem
│   ├── k8s-root-ca.pem
│   ├── kube-apiserver-key.pem
│   ├── kube-apiserver.pem
│   ├── kube-controller-manager-key.pem
│   ├── kube-controller-manager.pem
│   ├── kubelet-api-admin-key.pem
│   ├── kubelet-api-admin.pem
│   ├── kube-proxy-key.pem
│   ├── kube-proxy.pem
│   ├── kube-scheduler-key.pem
│   ├── kube-scheduler.pem
│   ├── metrics-server-key.pem
│   └── metrics-server.pem
└── tls.sh

2 directories, 40 files

systemd

::::::::::::::
kube-apiserver.service
::::::::::::::
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target
After=etcd.service

[Service]
EnvironmentFile=-/etc/kubernetes/apiserver
User=root
ExecStart=/usr/local/bin/kube-apiserver \
	    $KUBE_LOGTOSTDERR \
	    $KUBE_LOG_LEVEL \
	    $KUBE_ETCD_SERVERS \
	    $KUBE_API_ADDRESS \
	    $KUBE_API_PORT \
	    $KUBELET_PORT \
	    $KUBE_ALLOW_PRIV \
	    $KUBE_SERVICE_ADDRESSES \
	    $KUBE_ADMISSION_CONTROL \
	    $KUBE_API_ARGS
Restart=on-failure
Type=notify
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

::::::::::::::
kube-controller-manager.service
::::::::::::::
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/GoogleCloudPlatform/kubernetes

[Service]
EnvironmentFile=-/etc/kubernetes/controller-manager
User=root
ExecStart=/usr/local/bin/kube-controller-manager \
	    $KUBE_LOGTOSTDERR \
	    $KUBE_LOG_LEVEL \
	    $KUBE_MASTER \
	    $KUBE_CONTROLLER_MANAGER_ARGS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target


::::::::::::::
kube-scheduler.service
::::::::::::::
[Unit]
Description=Kubernetes Scheduler Plugin
Documentation=https://github.com/GoogleCloudPlatform/kubernetes

[Service]
EnvironmentFile=-/etc/kubernetes/scheduler
User=root
ExecStart=/usr/local/bin/kube-scheduler \
	    $KUBE_LOGTOSTDERR \
	    $KUBE_LOG_LEVEL \
	    $KUBE_MASTER \
	    $KUBE_SCHEDULER_ARGS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

核心配置文件

apiserver
###
# kubernetes system config
#
# The following values are used to configure the kube-apiserver
#

# The address on the local server to listen to.
KUBE_API_ADDRESS="--advertise-address=192.168.1.230 --bind-address=0.0.0.0"

# The port on the local server to listen on.
KUBE_API_PORT="--secure-port=6443"

# Port minions listen on
# KUBELET_PORT="--kubelet-port=10250"

# Comma separated list of nodes in the etcd cluster
KUBE_ETCD_SERVERS="--etcd-servers=https://192.168.1.230:2379,https://192.168.1.231:2379,https://192.168.1.232:2379"

# Address range to use for services
KUBE_SERVICE_ADDRESSES="--service-cluster-ip-range=10.254.0.0/16"

# default admission control policies
KUBE_ADMISSION_CONTROL="--enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,MutatingAdmissionWebhook,ValidatingAdmissionWebhook,Priority,ResourceQuota"

# Add your own!
KUBE_API_ARGS=" --allow-privileged=true \
                --anonymous-auth=false \
                --alsologtostderr \
                --apiserver-count=3 \
                --audit-log-maxage=30 \
                --audit-log-maxbackup=3 \
                --audit-log-maxsize=100 \
                --audit-log-path=/var/log/kube-audit/audit.log \
                --audit-policy-file=/etc/kubernetes/audit-policy.yaml \
                --authorization-mode=Node,RBAC \
                --client-ca-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
                --enable-bootstrap-token-auth \
                --enable-garbage-collector \
                --enable-logs-handler \
                --endpoint-reconciler-type=lease \
                --etcd-cafile=/etc/etcd/ssl/etcd-root-ca.pem \
                --etcd-certfile=/etc/etcd/ssl/etcd.pem \
                --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem \
                --etcd-compaction-interval=0s \
                --event-ttl=168h0m0s \
                --kubelet-https=true \
                --kubelet-certificate-authority=/etc/kubernetes/ssl/k8s-root-ca.pem \
                --kubelet-client-certificate=/etc/kubernetes/ssl/kubelet-api-admin.pem \
                --kubelet-client-key=/etc/kubernetes/ssl/kubelet-api-admin-key.pem \
                --kubelet-timeout=3s \
                --runtime-config=api/all=true \
                --service-node-port-range=30000-50000 \
                --service-account-key-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
                --tls-cert-file=/etc/kubernetes/ssl/kube-apiserver.pem \
                --tls-private-key-file=/etc/kubernetes/ssl/kube-apiserver-key.pem \
                --requestheader-client-ca-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
                --requestheader-allowed-names=aggregator \
                --enable-aggregator-routing=true \
                --requestheader-group-headers=X-Remote-Group \
                --requestheader-extra-headers-prefix=X-Remote-Extra- \
                --requestheader-username-headers=X-Remote-User \
                --proxy-client-cert-file=/etc/kubernetes/ssl/metrics-server.pem \
                --proxy-client-key-file=/etc/kubernetes/ssl/metrics-server-key.pem \
                --v=2"
配置说明
配置项 说明
–client-ca-file 定义客户端 CA
–endpoint-reconciler-type master endpoint 策略
–kubelet-client-certificate、–kubelet-client-key master 反向连接 kubelet 使用的证书
–service-account-key-file service account 签名 key(用于有效性验证)
–tls-cert-file、–tls-private-key-file master apiserver 6443 端口证书
metrics-server 配置说明
--requestheader-client-ca-file:ca 证书
--requestheader-allowed-names:  客户端证书常用名称列表。允许在--requestheader-username-headers指定的标头中提供用户名，如果为空，则允许在--requestheader-client-ca文件中通过当局验证的任何客户端证书
--requestheader-extra-headers-prefix:  要检查的请求标头前缀列表
--requestheader-group-headers:  要检查组的请求标头列表
--requestheader-username-headers:  要检查用户名的请求标头列表
--proxy-client-cert-file:  用于证明aggregator或kube-apiserver在请求期间发出呼叫的身份的客户端证书
--proxy-client-key-file:  用于证明聚合器或kube-apiserver的身份的客户端证书的私钥，当它必须在请求期间调用时使用。包括将请求代理给用户api-server和调用webhook admission插件
--enable-aggregator-routing=true:  打开aggregator路由请求到endpoints IP，而不是集群IP
controller-manager
###
# The following values are used to configure the kubernetes controller-manager

# defaults from config and apiserver should be adequate

#Add your own!
KUBE_CONTROLLER_MANAGER_ARGS="  --address=127.0.0.1 \
                                --authentication-kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \
                                --authorization-kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \
                                --bind-address=0.0.0.0 \
                                --cluster-name=kubernetes \
                                --cluster-signing-cert-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
                                --cluster-signing-key-file=/etc/kubernetes/ssl/k8s-root-ca-key.pem \
                                --client-ca-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
                                --controllers=*,bootstrapsigner,tokencleaner \
                                --deployment-controller-sync-period=10s \
                                --experimental-cluster-signing-duration=175200h0m0s \
                                --enable-garbage-collector=true \
                                --kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \
                                --leader-elect=true \
                                --node-monitor-grace-period=20s \
                                --node-monitor-period=5s \
                                --port=10252 \
                                --pod-eviction-timeout=2m0s \
                                --requestheader-client-ca-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
                                --terminated-pod-gc-threshold=50 \
                                --tls-cert-file=/etc/kubernetes/ssl/kube-controller-manager.pem \
                                --tls-private-key-file=/etc/kubernetes/ssl/kube-controller-manager-key.pem \
                                --root-ca-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
                                --secure-port=10257 \
                                --service-cluster-ip-range=10.254.0.0/16 \
                                --service-account-private-key-file=/etc/kubernetes/ssl/k8s-root-ca-key.pem \
                                --use-service-account-credentials=true \
                                --v=2"

controller manager 将不安全端口 10252 绑定到 127.0.0.1 确保 kuebctl get cs 有正确返回；将安全端口 10257 绑定到 0.0.0.0 公开，提供服务调用；由于 controller manager 开始连接 apiserver 的 6443 认证端口，所以需要 –use-service-account-credentials 选项来让 controller manager 创建单独的 service account(默认 system:kube-controller-manager 用户没有那么高权限)

scheduler
###
# kubernetes scheduler config

# default config should be adequate

# Add your own!
KUBE_SCHEDULER_ARGS="   --address=127.0.0.1 \
                        --authentication-kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig \
                        --authorization-kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig \
                        --bind-address=0.0.0.0 \
                        --client-ca-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
                        --kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig \
                        --requestheader-client-ca-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
                        --secure-port=10259 \
                        --leader-elect=true \
                        --port=10251 \
                        --tls-cert-file=/etc/kubernetes/ssl/kube-scheduler.pem \
                        --tls-private-key-file=/etc/kubernetes/ssl/kube-scheduler-key.pem \
                        --v=2"

最后各个master 节点执行安装脚本, 修改配置文件对应的IP,启动即可!

验证安装

# kubectl get cs
NAME                 STATUS    MESSAGE             ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-0               Healthy   {"health":"true"}
etcd-1               Healthy   {"health":"true"}
etcd-2               Healthy   {"health":"true"}

Node 安装

first_install.sh

#!/bin/bash
## 初始化 node 节点
# 下载 hyperkube
download_k8s(){
    if [ ! -f "hyperkube_v${KUBE_VERSION}" ]; then
        wget https://storage.googleapis.com/kubernetes-release/release/v${KUBE_VERSION}/bin/linux/amd64/hyperkube -O hyperkube_v${KUBE_VERSION}
        chmod +x hyperkube_v${KUBE_VERSION}
    fi
}

install_k8s(){
    echo -e "\033[32mINFO: Copy hyperkube...\033[0m"
    cp hyperkube_v${KUBE_VERSION} /usr/bin/hyperkube

    echo -e "\033[32mINFO: Create symbolic link...\033[0m"
    (cd /usr/bin && hyperkube --make-symlinks)

    echo -e "\033[32mINFO: Copy kubernetes config...\033[0m"
    cp -r conf /etc/kubernetes

    echo -e "\033[32mINFO: Copy kubernetes systemd config...\033[0m"
    cp systemd/*.service /lib/systemd/system

    systemctl daemon-reload
}

nginx_proxy(){
## master节点如有更改请手动更新配置
   echo -e "\033[32mINFO: Copy kubernetes nginx-proxy HA config...\033[0m"
   cp -a nginx /etc/
}

postinstall(){
    if [ ! -d "/var/log/kube-audit" ]; then
        mkdir /var/log/kube-audit
    fi

    if [ ! -d "/var/lib/kubelet" ]; then
        mkdir /var/lib/kubelet
    fi
    if [ ! -d "/usr/libexec" ]; then
        mkdir /usr/libexec
    fi
    ## coredns support
    if [ ! -d "/var/lib/resolve" ];then
	mkdir -p /var/lib/resolve/
        ln -s /etc/resolv.conf /var/lib/resolve/resolv.conf
    fi
}

install_k8s
postinstall
nginx_proxy

systemd

kubelet.service
[Unit]
Description=Kubernetes Kubelet Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=docker.service
Requires=docker.service

[Service]
WorkingDirectory=/var/lib/kubelet
EnvironmentFile=-/etc/kubernetes/kubelet
ExecStart=/usr/local/bin/kubelet \
	    $KUBE_LOGTOSTDERR \
	    $KUBE_LOG_LEVEL \
	    $KUBELET_API_SERVER \
	    $KUBELET_ADDRESS \
	    $KUBELET_PORT \
	    $KUBELET_HOSTNAME \
	    $KUBE_ALLOW_PRIV \
	    $KUBELET_ARGS
Restart=on-failure
KillMode=process

[Install]
WantedBy=multi-user.target
kube-proxy.service
[Unit]
Description=Kubernetes Kube-Proxy Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target

[Service]
EnvironmentFile=-/etc/kubernetes/proxy
ExecStart=/usr/local/bin/kube-proxy \
	    $KUBE_LOGTOSTDERR \
	    $KUBE_LOG_LEVEL \
	    $KUBE_MASTER \
	    $KUBE_PROXY_ARGS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

核心配置文件

kubelet
###
# kubernetes kubelet (minion) config

# The address for the info server to serve on (set to 0.0.0.0 or "" for all interfaces)
KUBELET_ADDRESS="--node-ip=IP"

# The port for the info server to serve on
# KUBELET_PORT="--port=10250"

# You may leave this blank to use the actual hostname
KUBELET_HOSTNAME="--hostname-override=NODE"

# location of the api-server
# KUBELET_API_SERVER=""

# Add your own!
KUBELET_ARGS="  --address=0.0.0.0 \
                --allow-privileged \
                --anonymous-auth=false \
                --authentication-token-webhook=true \
                --authorization-mode=Webhook \
                --bootstrap-kubeconfig=/etc/kubernetes/bootstrap.kubeconfig \
                --client-ca-file=/etc/kubernetes/ssl/k8s-root-ca.pem \
                --network-plugin=cni \
                --cgroup-driver=cgroupfs \
                --cert-dir=/etc/kubernetes/ssl \
                --cluster-dns=10.254.0.2 \
                --cluster-domain=cluster.local \
                --cni-conf-dir=/etc/cni/net.d \
                --eviction-soft=imagefs.available<15%,memory.available<512Mi,nodefs.available<15%,nodefs.inodesFree<10% \
                --eviction-soft-grace-period=imagefs.available=3m,memory.available=1m,nodefs.available=3m,nodefs.inodesFree=1m \
                --eviction-hard=imagefs.available<10%,memory.available<256Mi,nodefs.available<10%,nodefs.inodesFree<5% \
                --eviction-max-pod-grace-period=30 \
                --image-gc-high-threshold=80 \
                --image-gc-low-threshold=70 \
                --image-pull-progress-deadline=30s \
                --kubeconfig=/etc/kubernetes/kubelet.kubeconfig \
                --minimum-image-ttl-duration=720h0m0s \
                --node-labels=node.kubernetes.io/k8s-node=true \
                --pod-infra-container-image=gcr.azk8s.cn/google_containers/pause-amd64:3.1 \
                --port=10250 \
                --rotate-certificates \
                --rotate-server-certificates \
                --resolv-conf=/var/lib/resolve/resolv.conf \
                --fail-swap-on=false \
                --v=2"
proxy
###
# kubernetes proxy config
# default config should be adequate
# Add your own!
KUBE_PROXY_ARGS="   --bind-address=0.0.0.0 \
                    --cleanup-ipvs=true \
                    --cluster-cidr=10.254.0.0/16 \
                    --hostname-override=NODE \
                    --healthz-bind-address=0.0.0.0 \
                    --healthz-port=10256 \
                    --masquerade-all=true \
                    --proxy-mode=ipvs \
                    --ipvs-min-sync-period=5s \
                    --ipvs-sync-period=5s \
                    --ipvs-scheduler=wrr \
                    --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig \
                    --logtostderr=true \
                    --v=2"

nginx 代理(HA)

为了保证 apiserver 的 HA，需要在每个 node 上部署 nginx 来反向代理(tcp)所有 apiserver；然后 kubelet、kube-proxy 组件连接本地 127.0.0.1:6443 访问 apiserver，以确保任何 master 挂掉以后 node 都不会受到影响

nginx.conf
error_log stderr notice;

worker_processes auto;
events {
  	multi_accept on;
  	use epoll;
  	worker_connections 1024;
}

stream {
    upstream kube_apiserver {
        least_conn;
        server 192.168.1.230:6443;
        server 192.168.1.231:6443;
        server 192.168.1.232:6443;
    }

    server {
        listen        0.0.0.0:6443;
        proxy_pass    kube_apiserver;
        proxy_timeout 10m;
        proxy_connect_timeout 1s;
    }
}
nginx-proxy.service
[Unit]
Description=kubernetes apiserver docker wrapper
Wants=docker.socket
After=docker.service

[Service]
User=root
PermissionsStartOnly=true
ExecStart=/usr/bin/docker run -p 127.0.0.1:6443:6443 \
                              -v /etc/nginx:/etc/nginx \
                              --name nginx-proxy \
                              --net=host \
                              --restart=on-failure:5 \
                              --memory=512M \
                              nginx:1.14.2-alpine
ExecStartPre=-/usr/bin/docker rm -f nginx-proxy
ExecStop=/usr/bin/docker stop nginx-proxy
Restart=always
RestartSec=15s
TimeoutStartSec=30s

[Install]
WantedBy=multi-user.target

TLS Bootstrap

由于 kubelet 组件是采用 TLS Bootstrap 启动，所以需要预先创建相关配置 在master节点操作执行即可!

  • tls.sh
# 创建用于 tls bootstrap 的 token secret
kubectl create -f bootstrap.secret.yaml

# 为了能让 kubelet 实现自动更新证书，需要配置相关 clusterrolebinding

# 允许 kubelet tls bootstrap 创建 csr 请求
kubectl create clusterrolebinding create-csrs-for-bootstrapping \
    --clusterrole=system:node-bootstrapper \
    --group=system:bootstrappers

# 自动批准 system:bootstrappers 组用户 TLS bootstrapping 首次申请证书的 CSR 请求
kubectl create clusterrolebinding auto-approve-csrs-for-group \
    --clusterrole=system:certificates.k8s.io:certificatesigningrequests:nodeclient \
    --group=system:bootstrappers

# 自动批准 system:nodes 组用户更新 kubelet 自身与 apiserver 通讯证书的 CSR 请求
kubectl create clusterrolebinding auto-approve-renewals-for-nodes \
    --clusterrole=system:certificates.k8s.io:certificatesigningrequests:selfnodeclient \
    --group=system:nodes

# 在 kubelet server 开启 api 认证的情况下，apiserver 反向访问 kubelet 10250 需要此授权(eg: kubectl logs)
kubectl create clusterrolebinding system:kubelet-api-admin \
    --clusterrole=system:kubelet-api-admin \
    --user=system:kubelet-api-admin
  • 最后依次执行:
    • bash first_install.sh
    • 修改kubelet,proxy 配置文件hostname 和 IP地址
    • 每个node 先启动 nginx-proxy.service
    • 最后在各node 节点依次启动kubelet、kube-proxy 即可

kubelet server 证书

注意: 新版本 kubelet server 的证书自动签发已经被关闭(看 issue 好像是由于安全原因)，所以对于 kubelet server 的证书仍需要手动签署

# kubectl get csr
NAME                                                   AGE   REQUESTOR                  CONDITION
csr-99l77                                              10s   system:node:docker4.node   Pending
node-csr-aGwaNKorMc0MZBYOuJsJGCB8Bg8ds97rmE3oKBTV-_E   11s   system:bootstrap:5d820b    Approved,Issued
# kubectl certificate approve csr-99l77
certificatesigningrequest.certificates.k8s.io/csr-99l77 approved

验证节点

# kubectl get node -o wide
NAME         STATUS   ROLES    AGE    VERSION   INTERNAL-IP     EXTERNAL-IP   OS-IMAGE                KERNEL-VERSION                CONTAINER-RUNTIME
k8s-node01   NotReady    <none>   1m   v1.13.8   192.168.1.233   <none>        CentOS Linux 7 (Core)   4.4.189-1.el7.elrepo.x86_64   docker://19.3.1
k8s-node02   NotReady    <none>   1m   v1.13.8   192.168.1.234   <none>        CentOS Linux 7 (Core)   4.4.189-1.el7.elrepo.x86_64   docker://19.3.1
k8s-node03   NotReady    <none>   1m   v1.13.8   192.168.1.235   <none>        CentOS Linux 7 (Core)   4.4.189-1.el7.elrepo.x86_64   docker://19.3.1

此时查看节点状态,是处于 NotReady的，这是因为没有安装网络插件导致的. 暂时忽略,下面开始逐个部署Addons

Addons

calico

当 node 全部启动后，由于网络组件(CNI)未安装会显示为 NotReady 状态；下面将部署 Calico 作为网络组件，完成跨节点网络通讯；具体安装文档可以参考 Calico

这里我选择使用etcd 作为后端数据存储

下载示例文件

curl \
https://docs.projectcalico.org/v3.6/getting-started/kubernetes/installation/hosted/calico.yaml \
-O

初始化修改配置

#!/bin/bash
ETCD_CERT=`cat /etc/etcd/ssl/etcd.pem | base64 | tr -d '\n'`
ETCD_KEY=`cat /etc/etcd/ssl/etcd-key.pem | base64 | tr -d '\n'`
ETCD_CA=`cat /etc/etcd/ssl/etcd-root-ca.pem | base64 | tr -d '\n'`
ETCD_ENDPOINTS="https://192.168.1.230:2379,https://192.168.1.231:2379,https://192.168.1.232:2379"

sed -i "s@.*etcd_endpoints:.*@\ \ etcd_endpoints:\ \"${ETCD_ENDPOINTS}\"@gi" calico.yaml
sed -i "s@.*etcd-cert:.*@\ \ etcd-cert:\ ${ETCD_CERT}@gi" calico.yaml
sed -i "s@.*etcd-key:.*@\ \ etcd-key:\ ${ETCD_KEY}@gi" calico.yaml
sed -i "s@.*etcd-ca:.*@\ \ etcd-ca:\ ${ETCD_CA}@gi" calico.yaml
sed -i 's@.*etcd_ca:.*@\ \ etcd_ca:\ "/calico-secrets/etcd-ca"@gi' calico.yaml
sed -i 's@.*etcd_cert:.*@\ \ etcd_cert:\ "/calico-secrets/etcd-cert"@gi' calico.yaml
sed -i 's@.*etcd_key:.*@\ \ etcd_key:\ "/calico-secrets/etcd-key"@gi' calico.yaml

POD_CIDR="10.20.0.0/16"
sed -i -e "s?192.168.0.0/16?$POD_CIDR?g" calico.yaml

部署

 kubectl apply -f calico.yaml

此时,查看节点状态已经正常运行

 # kubectl get node
NAME         STATUS   ROLES    AGE     VERSION
k8s-node01   Ready    <none>   5m   v1.13.8
k8s-node02   Ready    <none>   5m   v1.13.8
k8s-node03   Ready    <none>   5m   v1.13.8

coredns

其他组件全部完成后我们应当部署集群 DNS 使 service 等能够正常解析；集群 DNS 这里采用 coredns，具体安装文档参考 coredns/deploy; coredns 完整配置

  • coredns.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: coredns
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:coredns
rules:
- apiGroups:
  - ""
  resources:
  - endpoints
  - services
  - pods
  - namespaces
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:coredns
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:coredns
subjects:
- kind: ServiceAccount
  name: coredns
  namespace: kube-system
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: coredns
  namespace: kube-system
data:
  Corefile: |
    .:53 {
        errors
        health
        ready
        kubernetes cluster.local in-addr.arpa ip6.arpa {
          pods insecure
          fallthrough in-addr.arpa ip6.arpa
        }
        prometheus :9153
        forward . /etc/resolv.conf
        cache 30
        loop
        reload
        loadbalance
    }
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: coredns
  namespace: kube-system
  labels:
    k8s-app: kube-dns
    kubernetes.io/name: "CoreDNS"
spec:
  replicas: 2
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
  selector:
    matchLabels:
      k8s-app: kube-dns
  template:
    metadata:
      labels:
        k8s-app: kube-dns
    spec:
      priorityClassName: system-cluster-critical
      serviceAccountName: coredns
      tolerations:
        - key: "CriticalAddonsOnly"
          operator: "Exists"
      nodeSelector:
        beta.kubernetes.io/os: linux
      containers:
      - name: coredns
        image: coredns/coredns:1.5.0

  • 部署DNS 自动扩容 在大规模集群的情况下，可能需要集群 DNS 自动扩容，具体文档请参考 DNS Horizontal Autoscaler

  • dns-horizontal-autoscaler.yaml

# Copyright 2016 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

kind: ServiceAccount
apiVersion: v1
metadata:
  name: kube-dns-autoscaler
  namespace: kube-system
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: system:kube-dns-autoscaler
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
rules:
  - apiGroups: [""]
    resources: ["nodes"]
    verbs: ["list"]
  - apiGroups: [""]
    resources: ["replicationcontrollers/scale"]
    verbs: ["get", "update"]
  - apiGroups: ["extensions"]
    resources: ["deployments/scale", "replicasets/scale"]
    verbs: ["get", "update"]
# Remove the configmaps rule once below issue is fixed:
# kubernetes-incubator/cluster-proportional-autoscaler#16
  - apiGroups: [""]
    resources: ["configmaps"]
    verbs: ["get", "create"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: system:kube-dns-autoscaler
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
subjects:
  - kind: ServiceAccount
    name: kube-dns-autoscaler
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: system:kube-dns-autoscaler
  apiGroup: rbac.authorization.k8s.io

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: kube-dns-autoscaler
  namespace: kube-system
  labels:
    k8s-app: kube-dns-autoscaler
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
spec:
  selector:
    matchLabels:
      k8s-app: kube-dns-autoscaler
  template:
    metadata:
      labels:
        k8s-app: kube-dns-autoscaler
      annotations:
        scheduler.alpha.kubernetes.io/critical-pod: ''
    spec:
      priorityClassName: system-cluster-critical
      containers:
      - name: autoscaler
        image: gcr.azk8s.cn/google_containers/cluster-proportional-autoscaler-amd64:1.1.2-r2
        resources:
            requests:
                cpu: "20m"
                memory: "10Mi"
        command:
          - /cluster-proportional-autoscaler
          - --namespace=kube-system
          - --configmap=kube-dns-autoscaler
          # Should keep target in sync with cluster/addons/dns/kube-dns.yaml.base
          - --target=Deployment/coredns
          # When cluster is using large nodes(with more cores), "coresPerReplica" should dominate.
          # If using small nodes, "nodesPerReplica" should dominate.
          - --default-params={"linear":{"coresPerReplica":256,"nodesPerReplica":16,"preventSinglePointFailure":true}}
          - --logtostderr=true
          - --v=2
      tolerations:
      - key: "CriticalAddonsOnly"
        operator: "Exists"
      serviceAccountName: kube-dns-autoscaler

metrics-server

从 v1.8 开始，资源使用情况的监控可以通过 Metrics API的形式获取，具体的组件为Metrics Server，用来替换之前的heapster，heapster从1.11开始逐渐被废弃。 Metrics-Server是集群核心监控数据的聚合器，从 Kubernetes1.8 开始，它作为一个 Deployment对象默认部署在由kube-up.sh脚本创建的集群中

这里需要强调一点: 由于metrics-server 默认开启的是 ClusterIP 443, 导致在部署traefik的时候 节点端口冲突,无法正常使用! 如果要用到 traefik 可尝试调整端口部署;

  • 部署此服务,需要单独配置证书文件,在前面我们已经提前生成了，且已经在apiserver 加了对应的配置,此处不再叙述;
  • clone 项目 metrics-server
  • metrics-server/deploy/1.8+/ 修改yaml 文件
    • resource-reader.yaml

    ``` ….. rules:

  • apiGroups:
    • ”” resources:
    • pods
    • nodes
    • nodes/stats
    • namespaces ## 增加此项 verbs:
    • get
    • list
    • watch ```
      • metrics-server-deployment.yaml
       ......
 containers:
  - name: metrics-server
    image: gcr.azk8s.cn/google_containers/metrics-server-amd64:v0.3.3
    volumeMounts:
    - name: tmp-dir
      mountPath: /tmp
    command:
    - /metrics-server
    - --kubelet-insecure-tls ## 新增
    - --kubelet-preferred-address-types=InternalIP ## 新增
  • 说明：
    • 增加了–kubelet-preferred-address-types=InternalIP和–kubelet-insecure-tls参数
    • 否则metrics server可能会从kubelet拿不到监控数据;
    • 具体报错可以通过kubectl log metrics-server-5687578d67-tx8m4 -n kube-system命令查看
    • 默认镜像拉取的 k8s.gcr.io仓库, 此处要改为gcr.azk8s.cn/google_containers/ 这个需要注意!!!! 否则无法拉取镜像
# kubectl top node
NAME         CPU(cores)   CPU%   MEMORY(bytes)   MEMORY%
k8s-node01   270m         6%     1483Mi          19%
k8s-node02   220m         5%     1409Mi          18%
k8s-node03   250m         6%     1576Mi          20%

部署完成后, 可通过kubectl top node 或者 kubectl top pods 查看资源利用信息

helm

关于 helm 的安装配置请查看我之前的文档 Kubernetes helm 包管理工具,此处不在叙述.

nginx-ingress

helm install stable/nginx-ingress --set controller.hostNetwork=true,rbac.create=true --name nginx-ingress --namespace kube-system

kubectl get svc -n kube-system
NAME                            TYPE           CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
nginx-ingress-controller        LoadBalancer   10.254.23.90     <pending>     80:34529/TCP,443:32750/TCP   30m
nginx-ingress-default-backend   ClusterIP      10.254.114.103   <none>        80/TCP                       30m

部署后查看状态,可以看到此处为 LoadBalancer,需要将类型改为 NodePort

kubectl edit svc nginx-ingress-controller -n kube-system
  • demo-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginx-ingress-demo
  namespace: default
spec:
  rules:
  - host: test.nginx.com
    http:
      paths:
      - backend:
          serviceName: nginx-demo
          servicePort: 80
        path: /

关于 ingress 的使用 我们后面将使用 Rancher 进行图形化的管理操作;

traefik-ingress

  • 关于 traefik 的部署和应用,请查看之前的教程 kubernetes nginx-ingress and traefik
  • 另外前面部署了 metrics-server，会导致 443 端口被占用的报错问题, 所以可以在前面部署 metrics-server 的时候修改下端口;

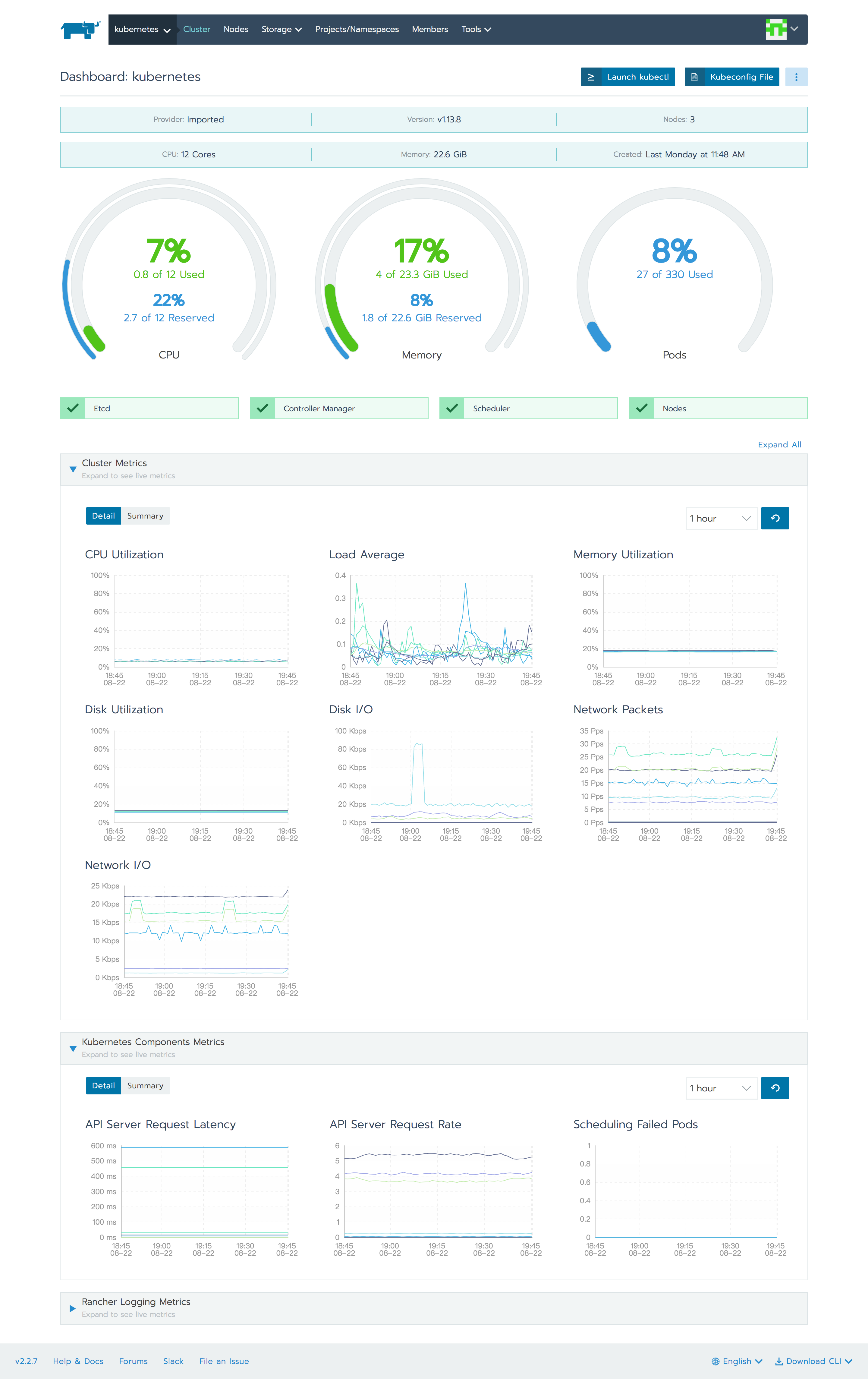

Rancher Dashboard

运行Rancher 服务端

docker run -d --restart=unless-stopped \
--name rancher \
-p 80:80 -p 443:443 \
-v /var/lib/rancher:/var/lib/rancher/ \
-v /var/log/rancher/auditlog:/var/log/auditlog \
-e AUDIT_LEVEL=3 \
rancher/rancher:stable

转载请注明出处，本文采用 CC4.0 协议授权

Search

    Post Directory
